knitout and kniterate

I’ve been working on a research project with B Claxton and Claire Anderson from the Smart Textiles Lab at Chelsea College of Arts. At the moment we’re running a reading group and building an index of open source knit tools, which we’re attempting to use with the Chelsea Kniterate machine.

Knitout is an open interchange industrial knit file format designed by the Textiles Lab at Carnegie Mellon University. This group’s research is extremely interesting, and they’re one of the major sources of new pieces of knit software/research. We decided to try and get some of their knitout files working on the Kniterate machine, I’m recording what we have tried here.

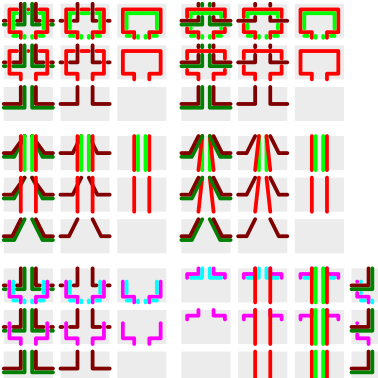

big fan of the knitout visualiser stitch svg reference files

what is knitout?

Knitout and related tools appear to still be very much under active research/development, and documentation and tools are distributed across a few different repositories, which made piecing them together initially a bit confusing. We found this website (though also a work in process) helpful for getting a sense of how everything fits together. For the workflow to produce these designs, we ended up using a combination of the following tools:

knitout examples, a repository of example knitout files, and JS used to generate them – some of these seem to be a little out of date
knitout/js visualisation tools, which provide a great sanity check for .k files, and also have a live-coding feature for writing js code that generates knit
the backend kniterate conversion tools, to convert generic knitout files to make things run on the kniterate

To make things simpler and get more verbose error messages, we downloaded these repositories locally and ran tools from the command line, rather than using the online conversion and visualiser tools.

We didn’t yet properly test out the npm package (knitout-frontend-js), or the sister python package as the example js file we used was acting more like a printer. It’s possible that some of the kniterate conversion tools will be better suited to files generated in this way – we’ll try this in attempt 2.

We got the sense that Knitout has been developed primarily with the Shima in mind, and there are a bunch of settings (eg carrier numbers, the inhook and outhook commands) that don’t work on the Kniterate. To resolve this, CMU have published a script that takes in a knitout file and adapts it for the kniterate specifically, which we are also using (more below).

attempt 1 – stripes

slomo video I took of the machine running when we were trying to debug the waste section

We used the example ‘sheet-stripes.js’ from the knitout examples repo to create the initial file. This file seems to come from an era predating the npm package, as it’s just printing out knitout line by line to a file. More recent examples instead use API calls to construct the knitout lines. Similarly, I think the API now has a way of writing files – we used a pipe to directly create the .k file. After some failed attempts with lots of waste yarn bunching, we changed it to be 40 stitches wide rather than 20 (we also changed the tension when we did this though, so it could have been either).

$ node stripes.js > stripes-example.k

In order to adapt this for the machine, we then use some of the backend tools. First, we use the knitout-alter-kniterate file, from the knitout-kniterate backend extras folder, to take the original knitout file and adapt it for the kniterate. (input: stripes-example.k, output stripes-example-kniterate.k)

$ node knitout-alter-kniterate.js

We used the following settings for the machine:

Roller advance: 450
Roller advance for transfers: 0
Main stitch number: 6
Stitch number for transfers: 5
Main speed number: 300
Speed number for transfers: 100
Would you like to change any carriers: n

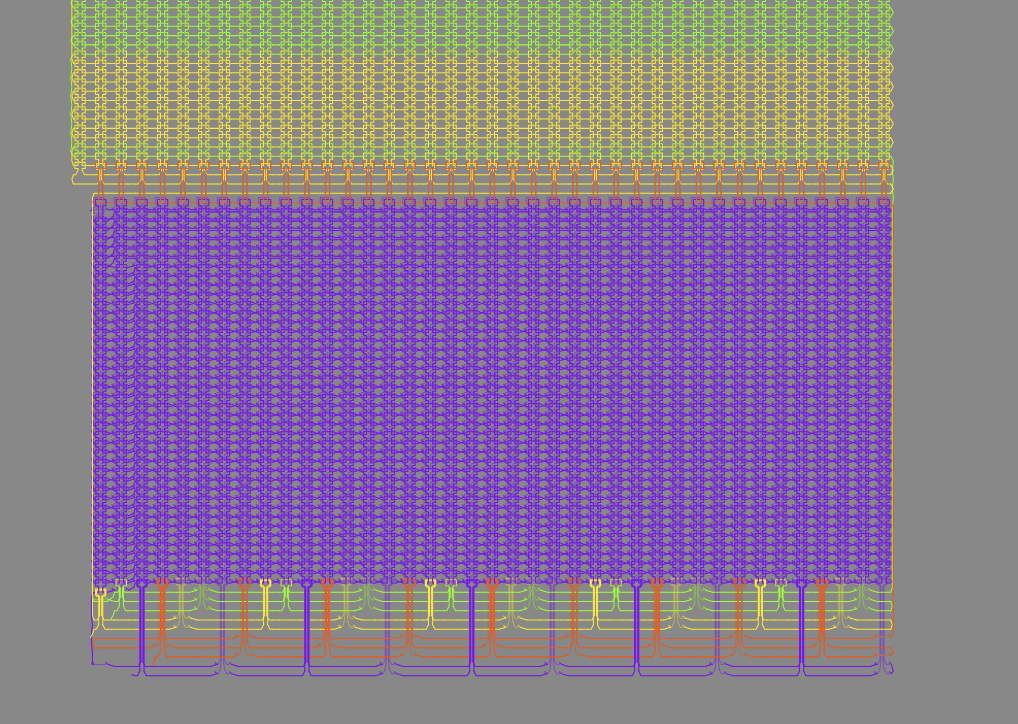

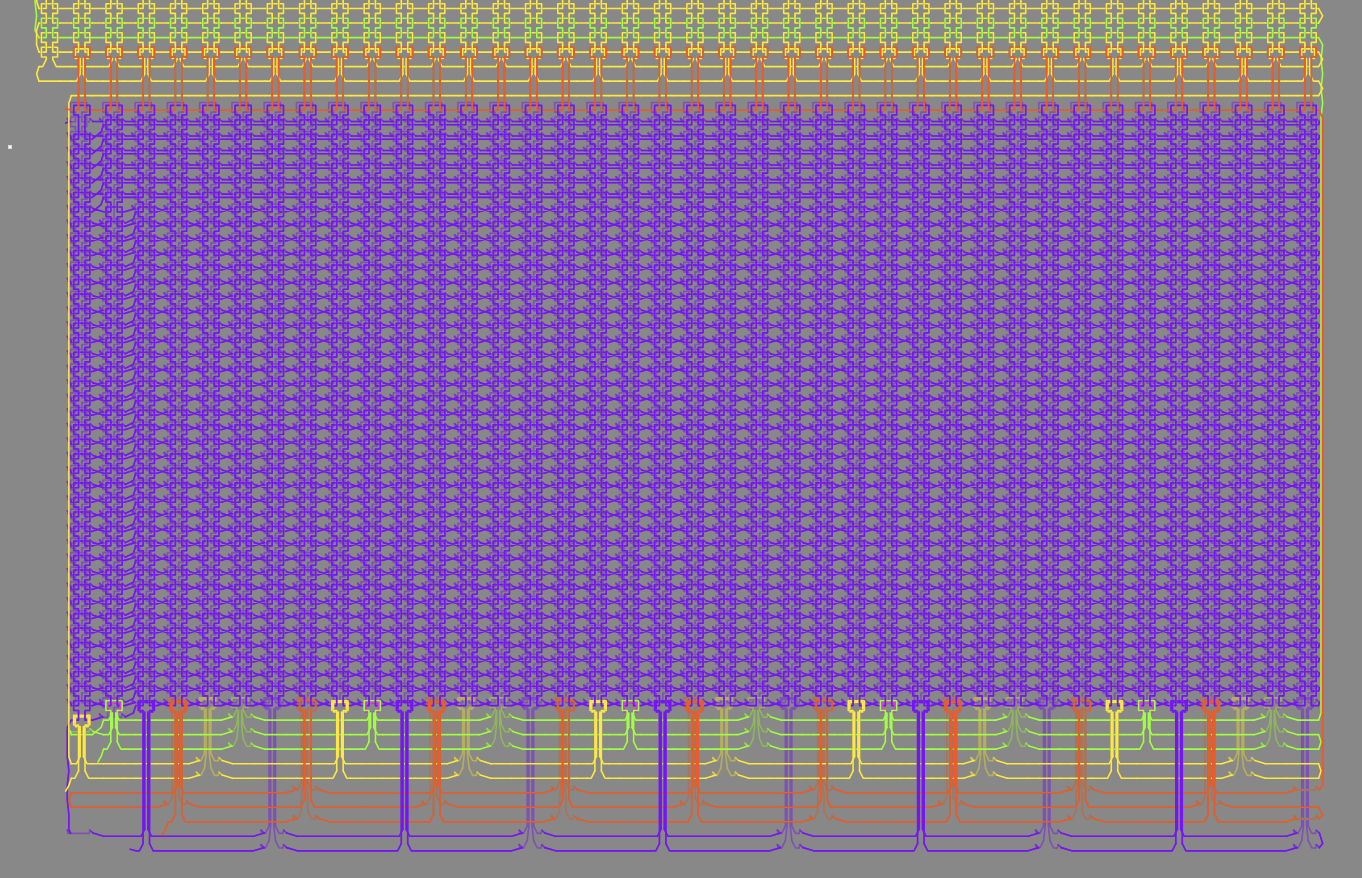

the added waste section, in the knitout visualiser

We then used the waste-section.js file (in the same folder) to prepend a waste section to the file. Sometimes depending on the settings used (this happened when we used the ‘0’ setting on the cast on style; was fine otherwise), the file that this creates can skip out one of the knitout commands needed to bring in a carrier; we resolved this by manually editing the file to add the line in 3 to bring the third carrier in. (input: stripes-example-kniterate.k, output stripes-example-kniterate-waste.k).

$ node waste-section.js

It took us a few attempts to get the tension right – here are the settings used when we got it to work.

Roller advance: 100
Stitch number: 5 --> this turned out to maybe be quite important
Speed number: 150
Carrier to use for waste yarn: 6 --> this is our waste yarn
Carrier to use for draw thread: 1 --> draw thread yarn
Cast on style: Open tube

We then used the knitout-frontend visualiser to check that the file looks okay. I ran the visualiser locally, but to be honest it would probably be exactly the same using the online version.

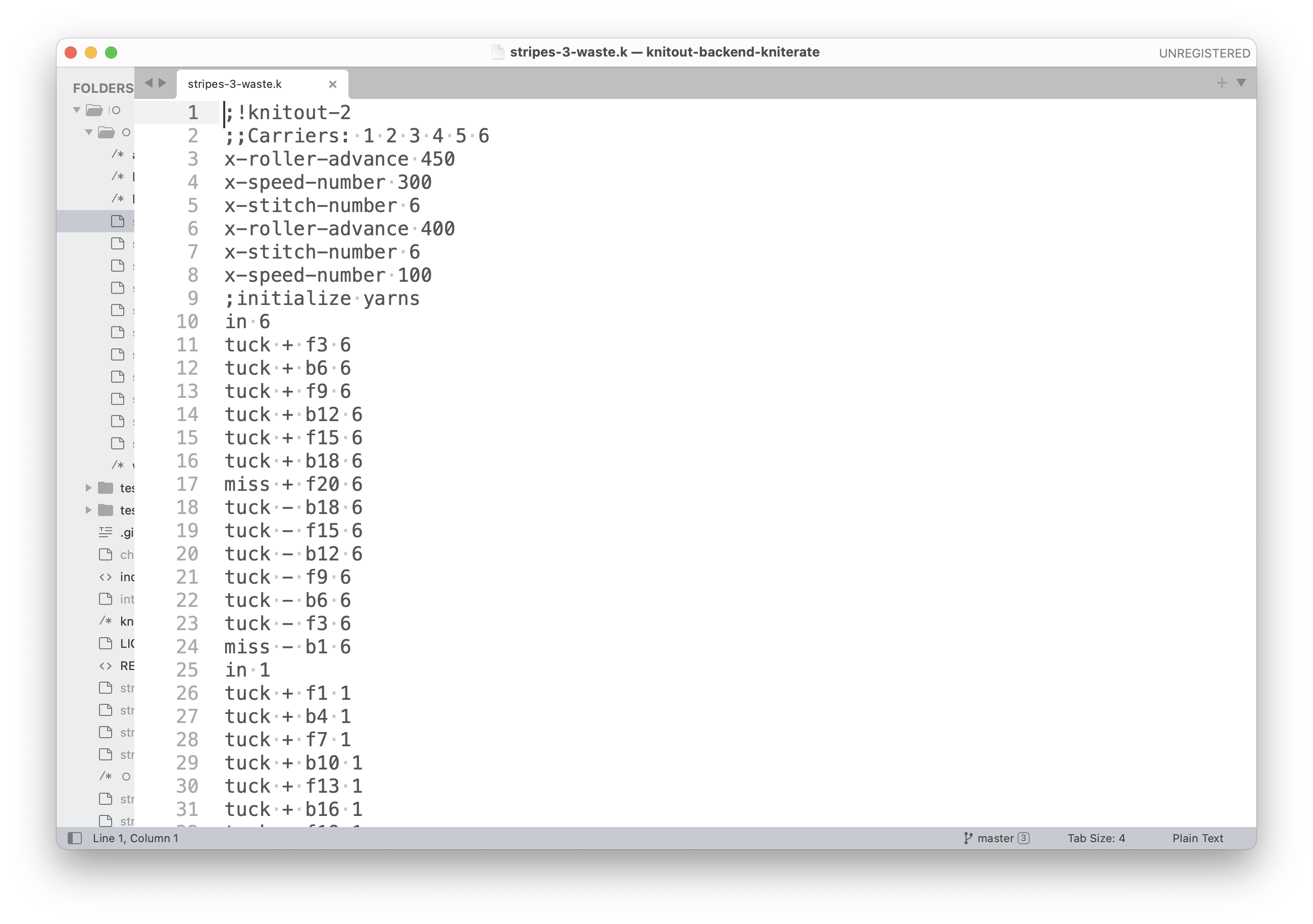

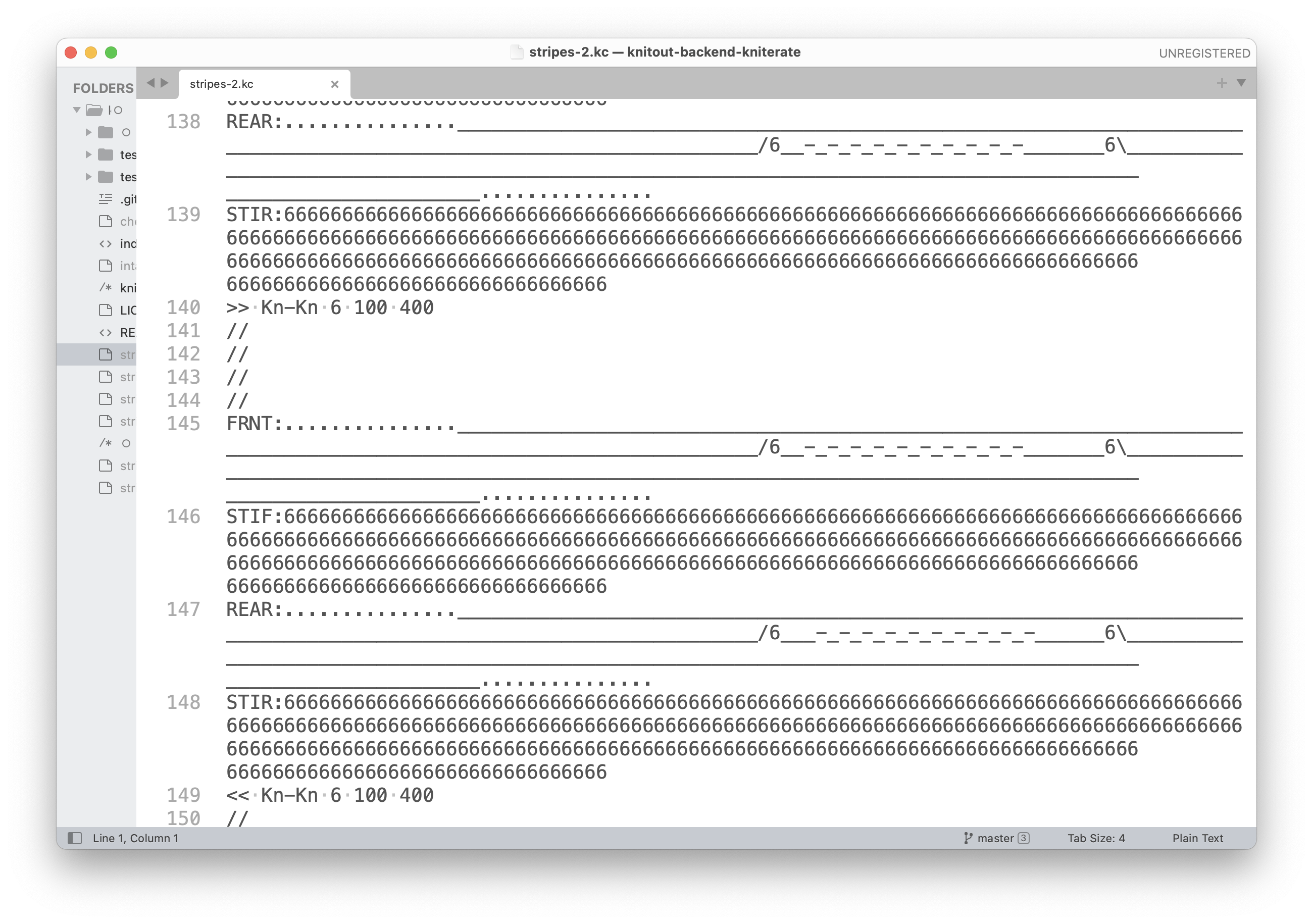

knitout (top) and equivalent kcode (bottom) for waste yarn section

The final step is to use the the knitout-to-kcode file to transform the final file (knitout -> kniterate -> waste yarn) into a .kc file, which makes it ready to run on the kniterate machine. This complained a bit but was otherwise fine – though it did throw an error on the times where we were missing the in 3 command to bring in the third carrier.

node knitout-to-kcode.js extras/stripes-example-kniterate-waste.k stripes.kc

I hadn’t looked at a kcode file before, they’re a super interesting format.

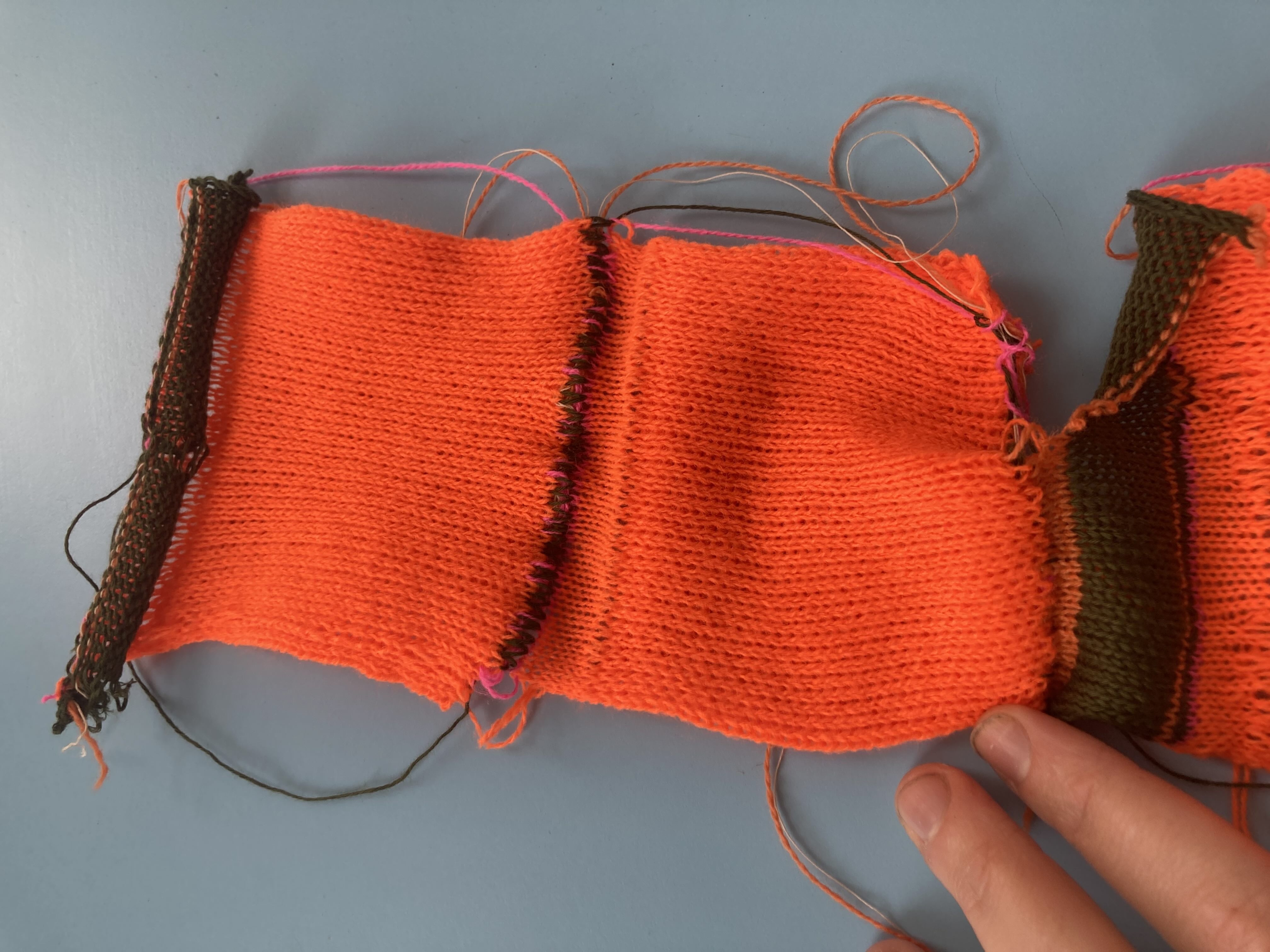

Our first attempts were not wildly successful, but we did end up learning a lot. Because the kniterate machine can already be a bit sensitive, it’s unclear often what’s issues with the file vs the machine being quite particular/temperamental about the way it wants to do things. After a lot of wrangling the waste yarn, in the end our main issues came with bringing the second stripe in – but this could have had more with the way the kniterate was moving the plates with the carriage than anything else.

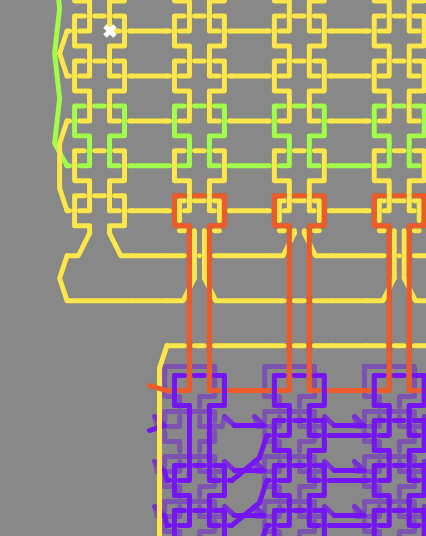

stitch difference between waste and main yarn the main section is one stitch wider?

What was very helpful was going through the entire process – including at different points manually debugging the knitout files – and seeing the links between the code, the visualiser, and what was happening on the machine.

questions/thoughts from round 1

how do you get the machine to bind off? Knitout has a command called ‘outhook’ – but this doesn’t work on the kniterate. Is there an equivalent?
why is the waste yarn addition 1 stitch less wide than the eventual pattern?
is there a major difference between what’s possible in the Python and JS packages? or the intention to be?
at present, because the code is spread across so many repositories but – in the case especially of the backend – seems to need to be quite interoperable, it feels a bit like version changes between different repos might introduce a lot of issues

attempt 2 – testing different tools

Today, I wanted to experiment with more recently developed JS-based tools that automate slightly more of the tasks. Repositories used in this round:

knitout examples (like before – testing out more js files)
Gabrielle Ohlson’s knitout image processing repository, which automatically generates waste section and bind-off, plus has some automated shaping tools

1 – fairisle

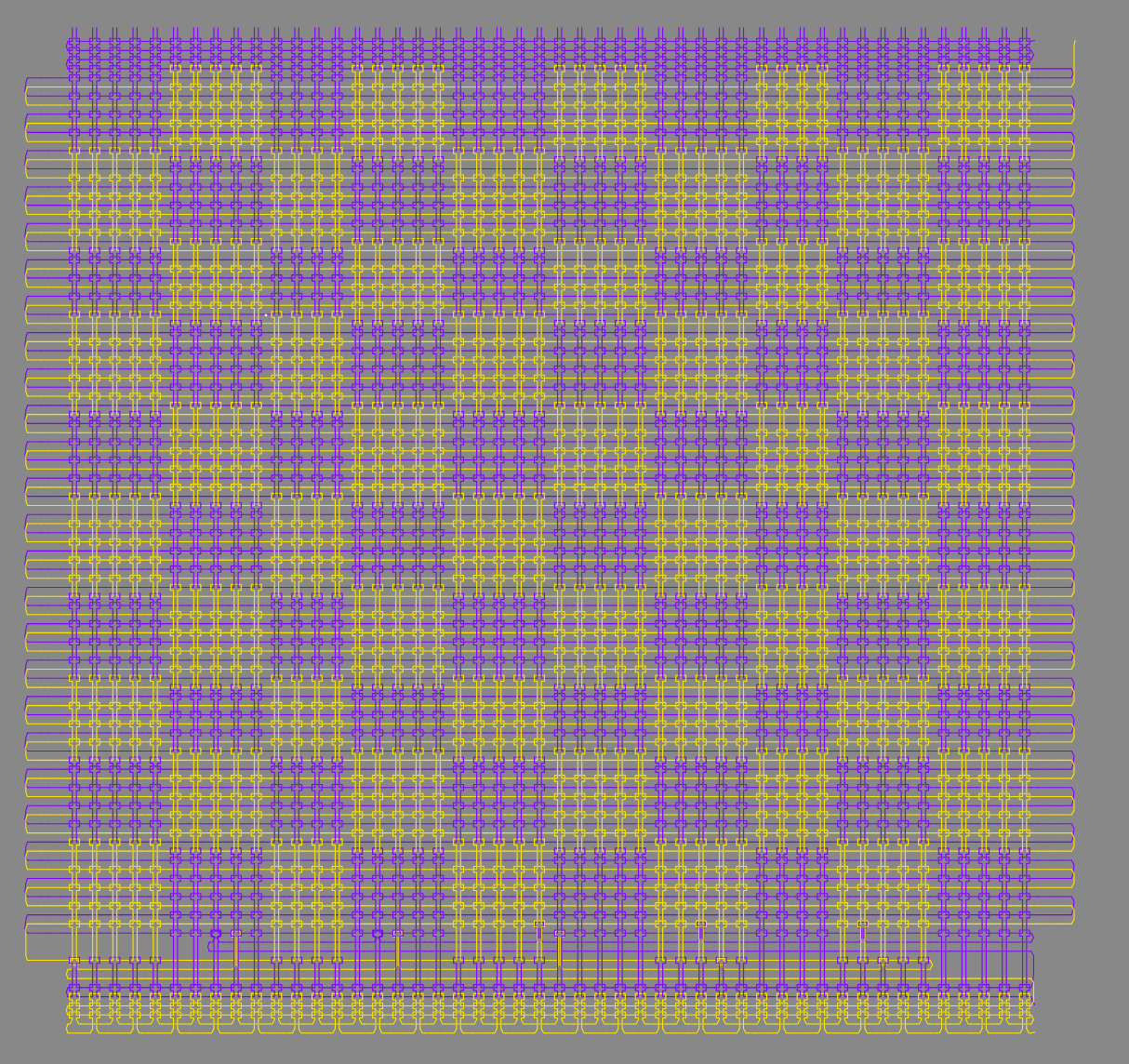

generated with the fairisle image script

The first pattern I tried to use was the fairisle generating file fairisle-image.js in the examples repository. Somewhat misleadingly, this file won’t work in the frontend visualsiser interface, as it makes calls to the local filesystem so has to be run using node.

When I do use it in the correct way:

$ node fairisle-image.js fairisle-test.png > fairisle-test.k

It works really well. Another small note – transparent background pngs get read as black not white, which initially caused some issues, but when I made the background white it was fine.

I didn’t try adding the waste / bindoff to this yet but thought it came out okay.

2 – knitout image processing

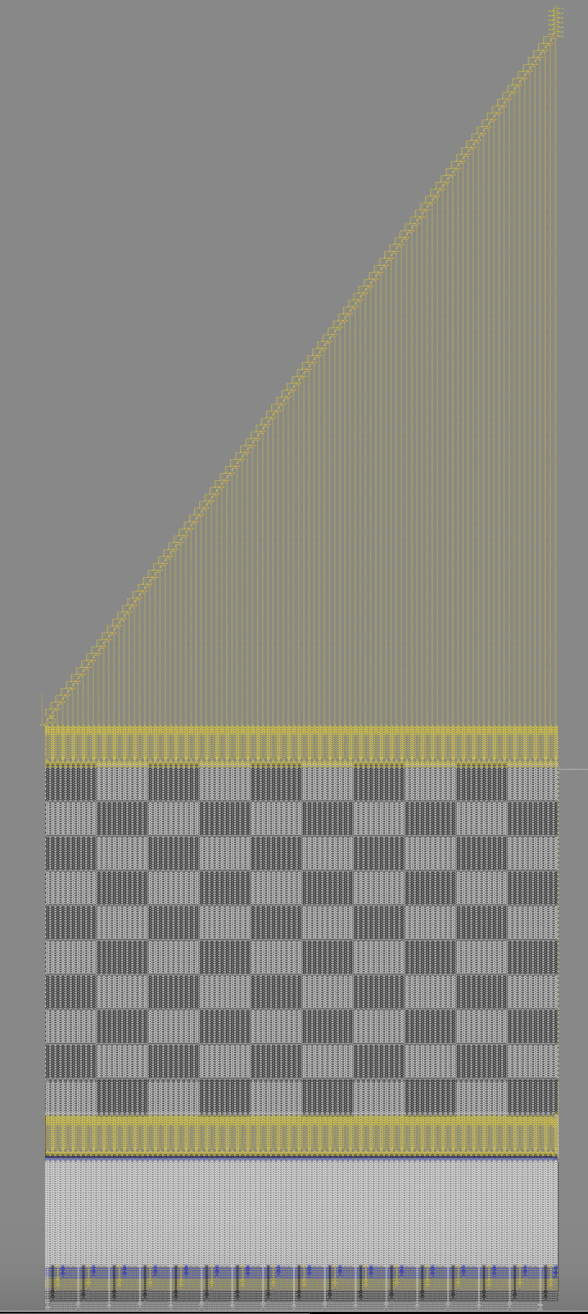

results from image processing, with waste and bindoff

This seems a really promising interface to do a bunch of different operations that previously were scattered across a lot of the different CMU repositories.

Using the same image, I tried using the knitify file. The command line interface took me a minute to get used to – it ‘autopresses’ enter once you type a y/n for the yes/no questions, which I kept getting tripped up on. Knitify is launched using the following:

npm run knitify

You then proceed to specify the file. This initially seemed more kniterate friendly, though the code for kniterate had a fatal bug encountered when changing the waste settings, caused by a typo (was also easily solved), which does indicate that this has probably been tested a bit more on the Shima.

Once the bug was fixed, I kept getting a more persistent bug about the carriers:

Assertion failed: no carrier found for leftover needle: 100 (@ row 1)

It still allowed me to write out the file, but this is something I want to try fixing. There is also a more general carrier issue, in that it doesn’t let you specify which carrier you want to use for what during the setup. At least for us, on the Kniterate, carriers 1 and 6 are reserved for the draw thread and waste yarn specifically, but in this instance carriers 1 and 2 are automatically used for the pattern.
